Assignment 2: Reducing the Parameters of the World

This homework is to be done in groups of two. Each member of each group must attempt at least one problem from part A and one problem from part B. Each group will submit a SINGLE HTML page hw2/index.html, which may link to different user areas under each userid.

In this work, you will explore the processes by which an agent, encountering the world repeatedly with its sensors and actuators, may create a "representation"- i.e. a model of an environment and a "decision space" in which it can search.

For example, for the continuum world agent C, the environment was the grid (partially known), and the decision space was either to SUCK, or to move UP, DOWN, LEFT, or RIGHT. But how did it arrive at this representation?

Another important issue is whether the representation is the best one to use. In fact, is there only one representation, or should there be differing representations for different types of tasks? In humans, clearly, representations for the same environment are different for differing tasks, and this may make for considerable efficiency.

So, how should an AI agent determine its representation based on its task experience? Is there some representation that is "natural" for a given domain + objective?

Human specified representations are often not very easy to achieve for the machine. For example, in the continuum world agent subproblem E we saw that the robot would have a lot of difficulty constructing a cartesian grid space from its sensory input.

We will consider dimensionality reduction techniques for discovering representations in two different domains, one involving constructing models for written numerals, and the other for robot motions. Both of these will be based on the Isomap algorithm.

Resources for Isomap

  1. Information on the algorithm:
    Joshua B. Tenenbaum and Vin de Silva and John C. Langford, A Global Geometric Framework for Nonlinear Dimensionality Reduction , Science, v. 290, pp. 2319--2323, 2001.
  2. You may wish to use the widely used Matlab implementation of Isomap by Tenenbaum et al. You will need just two files from this package: Isomap.m and L2_distance.m, and you can ignore the other files. See the Readme page to understand how to use these files.

    However, you may also use any C or Java code. If you adapt code from others, please give the link in your webpage.

Submission

As mentioned above, each group will need to create a SINGLE webpage hw2/index.html, and BOTH persons' areas should link to the same page. The links should work from each area. In this file, you need to write your answers for all parts A1-A3 and B1-B4, and give links to resources (code etc) as appropriate for each part.

Note that A3 and B3 are non-implementational. The others involve discovering the non-linear dimensionality in different datasets using Isomap.

Evaluation: If you do everything stated in the assignment, you get 80% marks. The other 20% is reserved for particularly excellent explorations of any of the questions.

Due date: Thursday 26 Jan, 9:00 PM.

A. Hand-written Numerals: MNIST Database

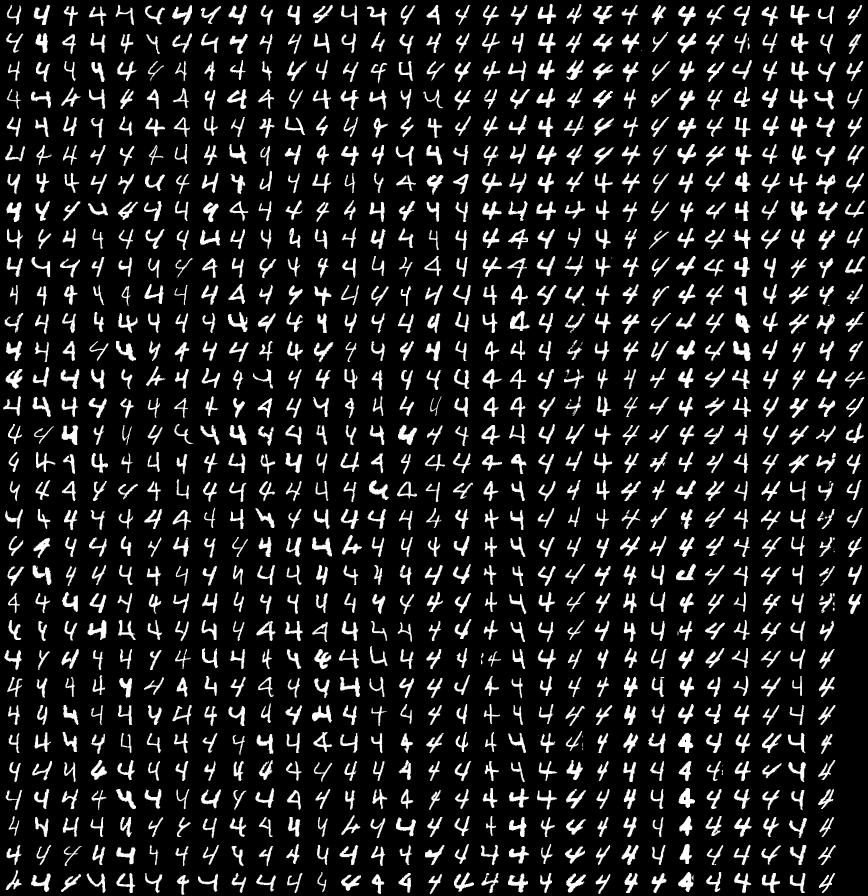

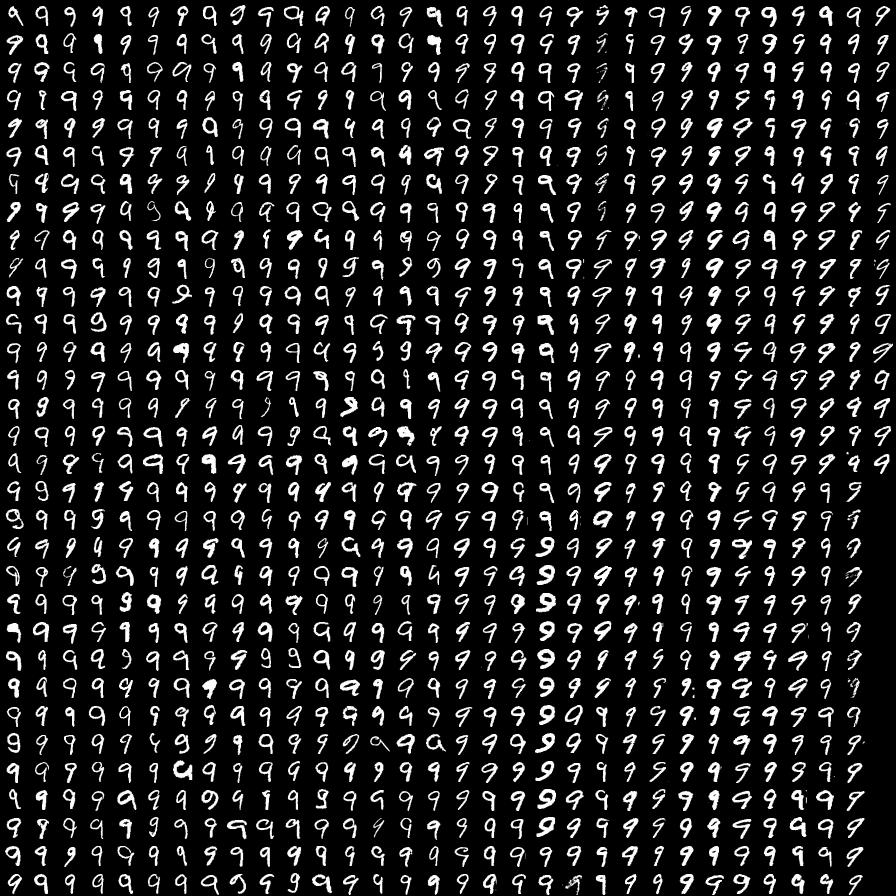

Some 4's and 9's from the MNIST database.
(Click the images to expand.)

In this work, we consider how an imaging system may construct models for handwritten numerals. We will use 2000 images from the MNIST database, each of size 28x28 pixels. The images have labels indicating which digit it is.

You will now consider whether these images lie along some lower dimensional manifold in the 784-dimensional image space. The objective of this exercise is to learn the importance of a distance metric; we shall be considering both the plain euclidean distance, and the tangent distance metric.

  1. Construct the 2-D Isomap model for the first 2000 samples of the MNIST training set using Euclidean distance. Show the clusters of the following groups:
    1. Digits 1 and 7
    2. Digits 4 and 9
    3. All the digits
    4. EXTRA CREDIT: Show some of the digits on the maps, as in the Tenenbaum's paper.
  2. Construct the 2-D Isomap model using tangent-distance. Show the same clusters as above.
  3. HINDI NUMERAL DATA COLLECTION

    Have 20 (or more) of your Hindi speaking friends, write the following information along a line on a single sheet of paper:

    1. Roll number
    2. Date of birth in DD - MM - YYYY format
    3. The time when they are writing in HHMM in 24-hr format (so 3:30 pm is 1530)
    4. The value of pi to ten decimals.

    Please scan each page using a high-quality scanner and submit both the hand-writing page and the scanned copy as an image. Some of you may wish to use this data in a possible project in this course.

    Please take 3 print outs of this PDF file on 3 different A4 sheets horizontally. Please use clean sheets of paper and DO NOT use both the sides - use just one side of each paper. If you want to collect more data, you can print and use more sheets.

    The deadline for this task is 1st Feb (Wednesday). You will have to submit the sheets in the class on that day. You also need to upload the scanned copies of these sheets before the class.

Resources

  1. Source code in C [td.c] for computing tangent-distance. You will NOT have to use this file directly. Once it has been compiled using mex, you can use this Matlab code [tangent_d.m] to invoke it. The td.c file is a modified version of Daniel Keysers' tangent distance implementation to allow it to be invoked from Matlab.

    In case you want to implement the whole work in C, you can use the original pure C implementation by Daniel Keysers.

  2. MNIST Database: Download the gz files and unzip them into './data' in your working directory.
  3. Matlab code [loadDigits.m] to read the digit data from the MNIST database. See the comments at the beginning of the code for details on how to use this file. Digits in the MNIST are randomly distributed. So it is just sufficient to read the first 2000 samples using loadDigits.m.

B. Discovering Robot Motion DOFs

In part B of this homework, you are to take a set of high-dimensional robot images and discover the underlying regularity, if any.

  1. In this set of 200 images [nao200.zip in Resources below], you see a humanoid robot, the Aldebaran Nao, moving its left arm. Take these images and apply Isomap on these. Report the most likely dimensionality of the manifold embedded in these high-dimensional images, as you observe it from the residual error curve. Explain the dimensionality that you observe.

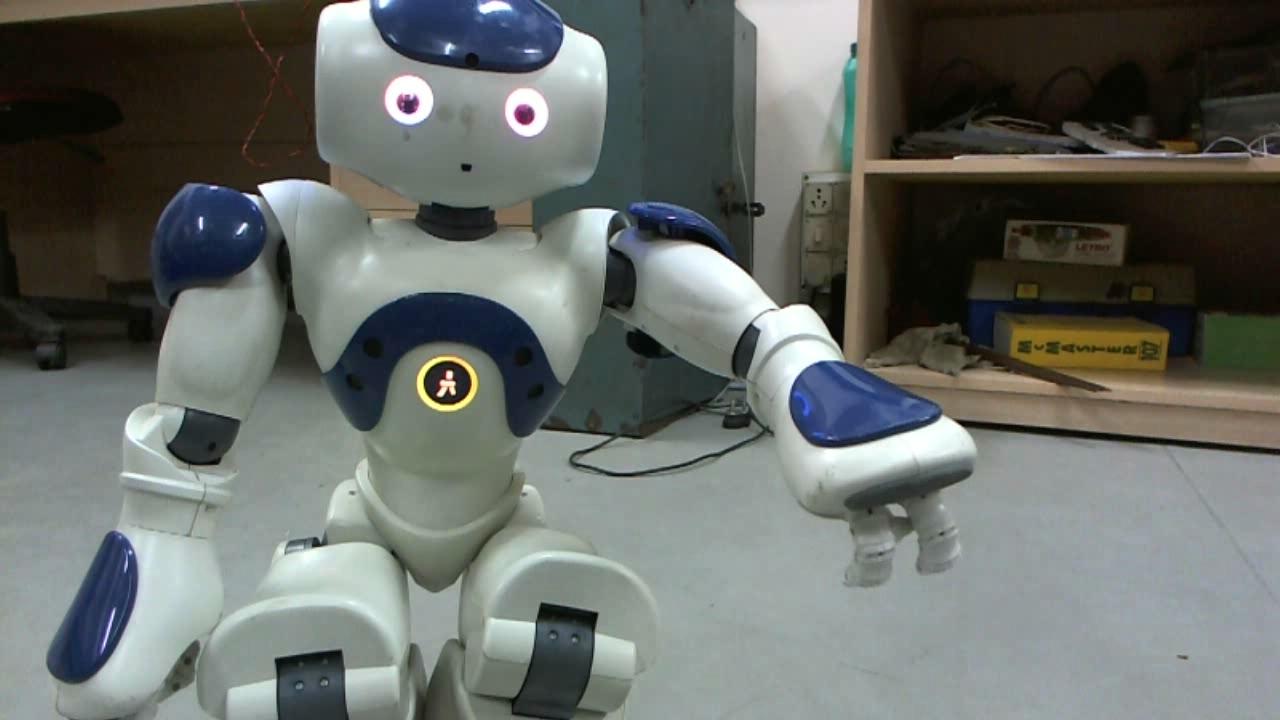

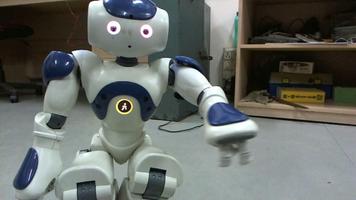

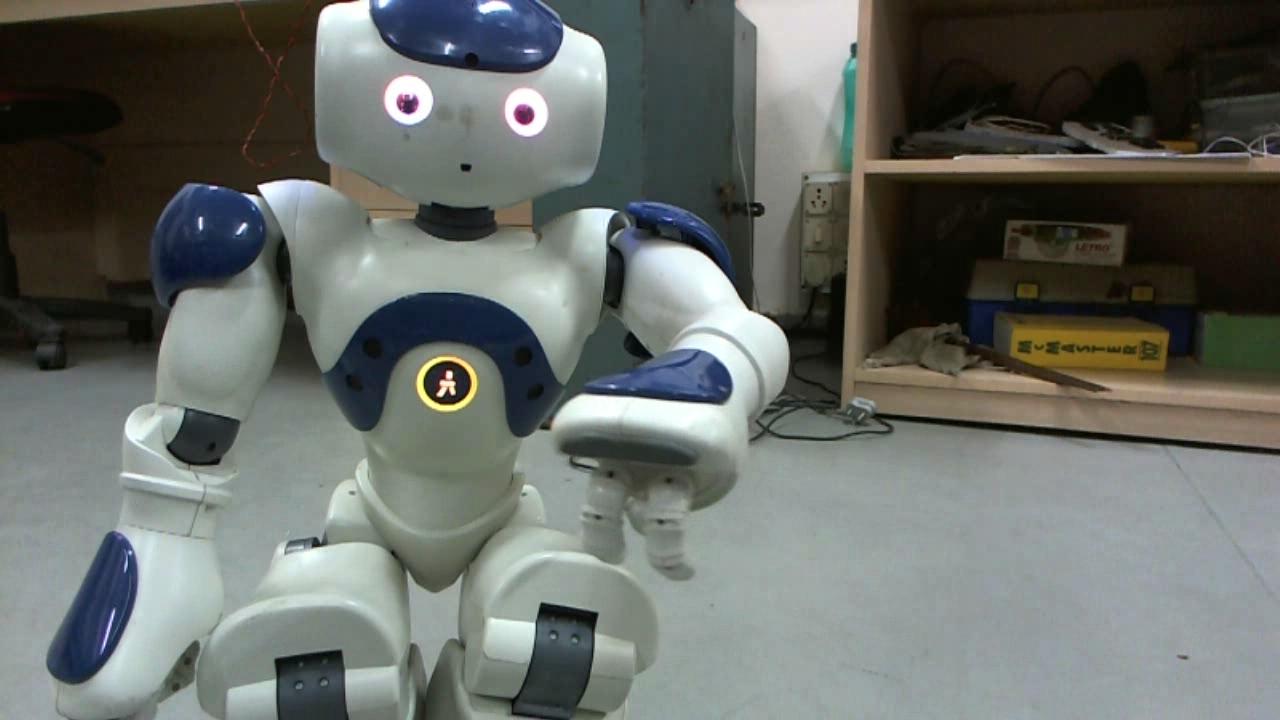

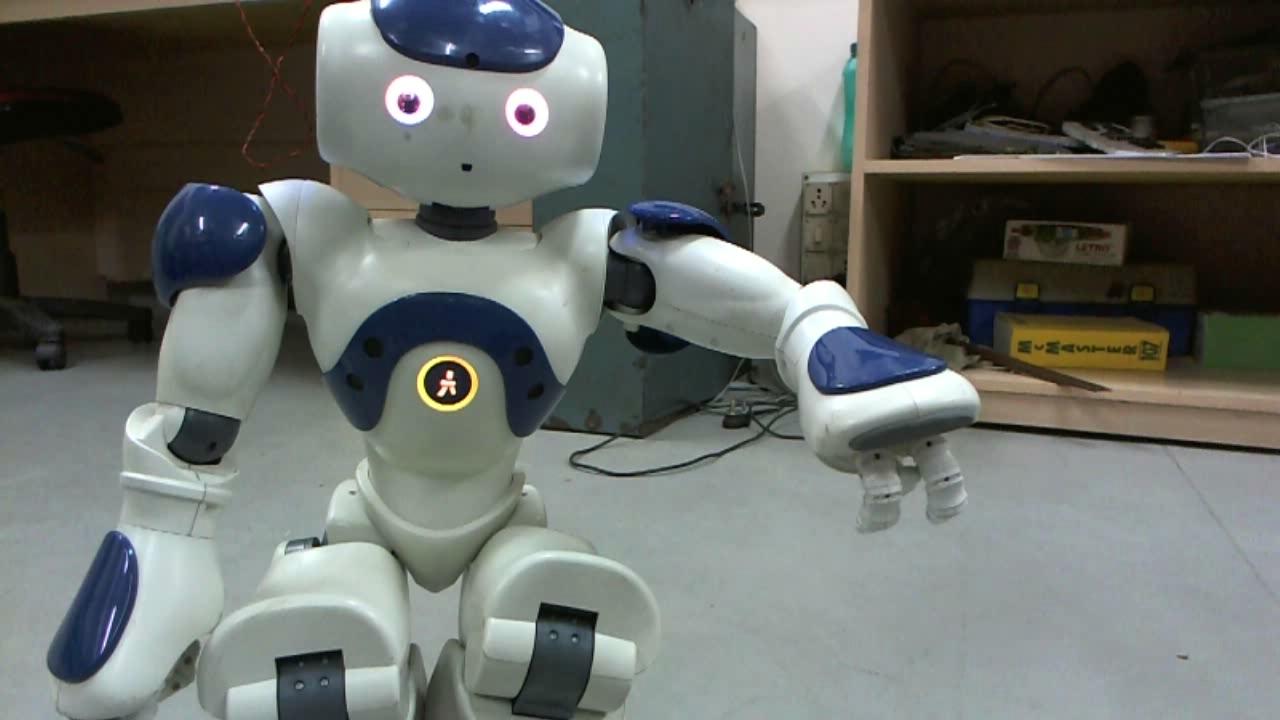

    Images 001, 075, 130 and 200

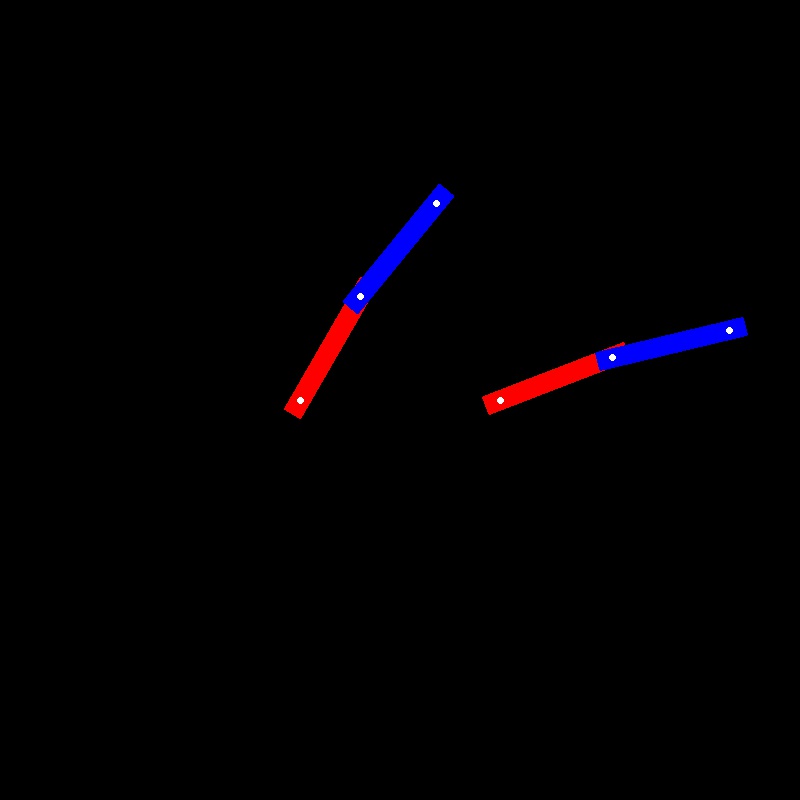

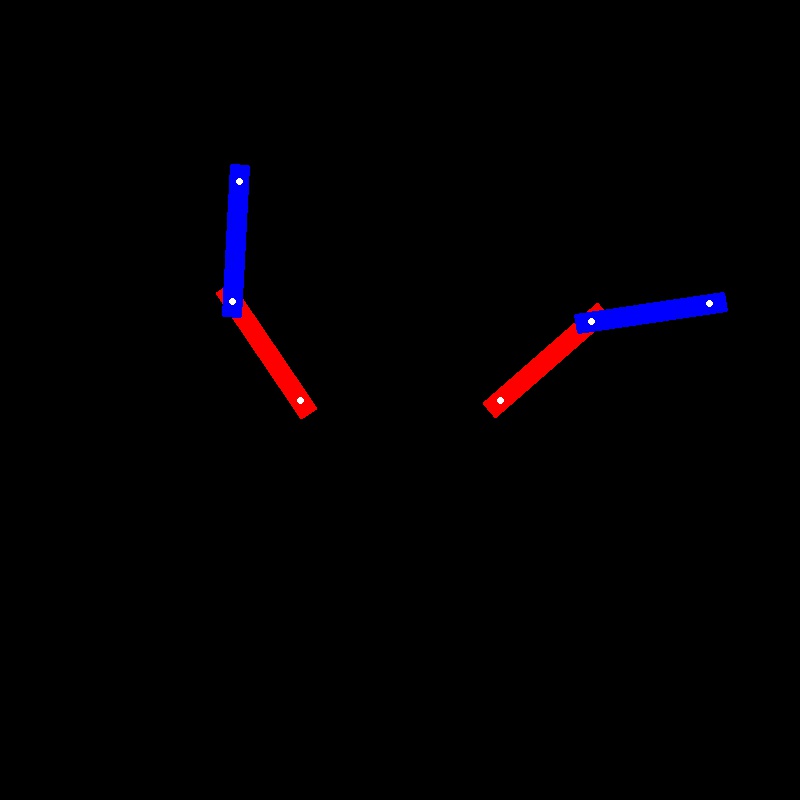

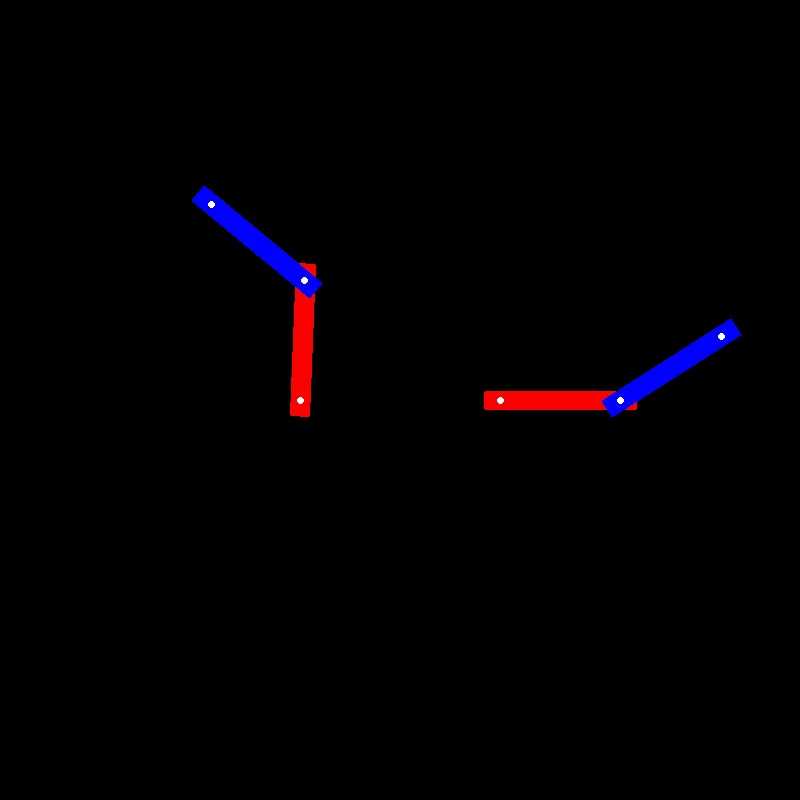

  2. Consider two robotic agents, each with two arms. Both arms have two links that move on a single plane. So, together they occupy a 4-DOF space: theta1, theta2 for the arm on the left, and theta3, theta4 for the arm on the right. Each link of each arm is of length L units, and their centers are apart by D units.



    Now consider the entire set of images in [2arms-random in Resources below]. Apply Isomap on this data and report the most likely dimensionality of the data as you observe it from the residual error curve. Explain the dimensionality you observe.

  3. Consider the robots with L=15 and base distance D=20. Now suppose the two arms of the above robot are working together to hold a box of dimension 5x5. Two robots can hold the box horizontally along its midline. Assume the links are pure lines (no thickness), consider the box whose center is at a location (5,12) w.r.t. the base of the arm on the left.

    Solve for theta1,theta2 and theta3,theta4 so that the two arm tips are holding the box along its horizontal midline. Submit a diagram showing the arm and the angles theta1 to theta4, and check your answers using a protractor.

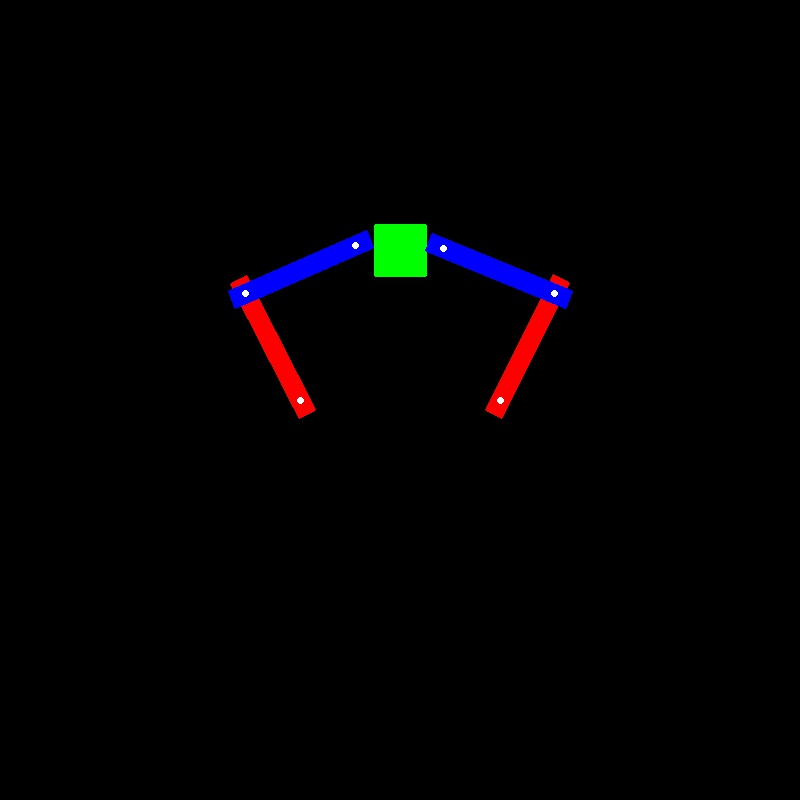

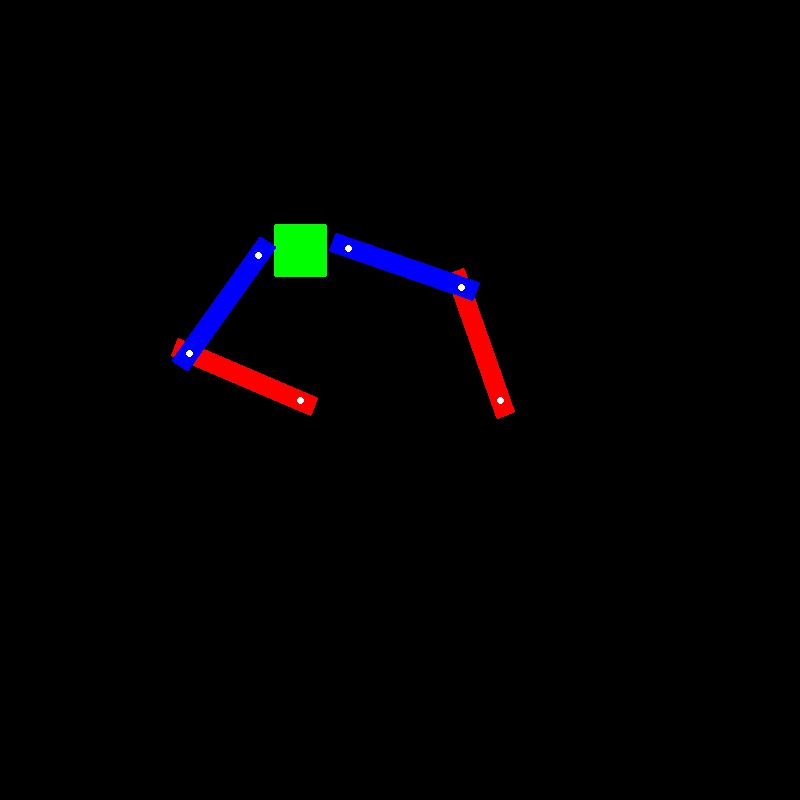

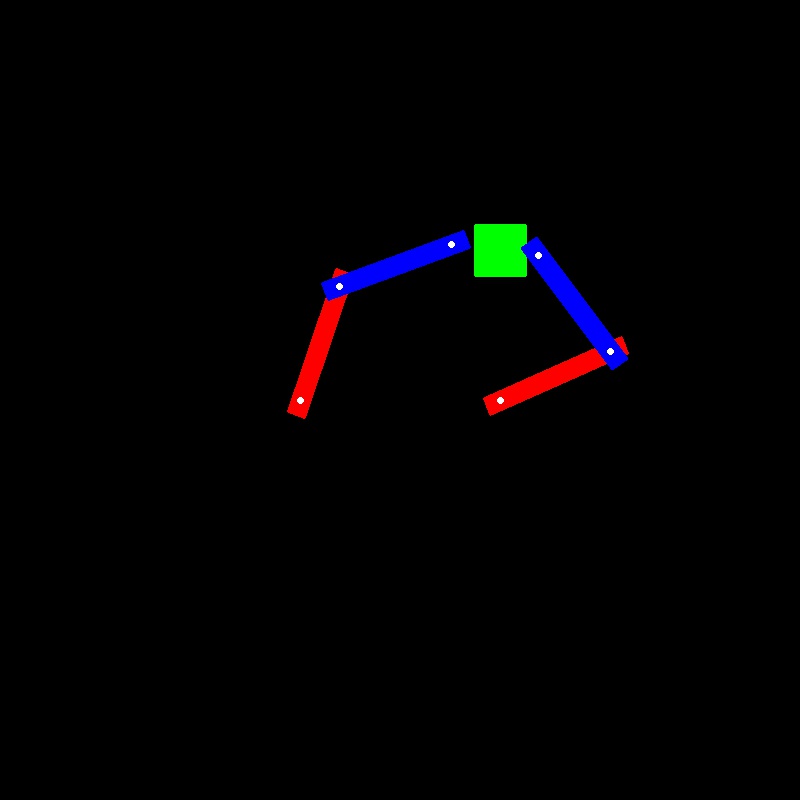

  4. Consider now the set of images in which the two-arms are working together to move a box horizontally [2arms-box-horiz in Resources below]. Apply Isomap and report the best dimensionality of the resulting data. Compare with your answer in B2 and explain your result.

Resources

  1. [nao200.zip] (200 images, 1Mpix each)
  2. [2arms-random.rar] (500 images) 800x800   [2arms-random-angles.txt]
  3. [2arms-box-horiz.rar] (200 images) 800x800   [2arms-box-horiz-angles.txt]
  4. Matlab code [loadImageData.m] to load these images; this is similar to loadDigits.m. Please see the comments at the beginning of the file to understand how to use it.
