Motivation

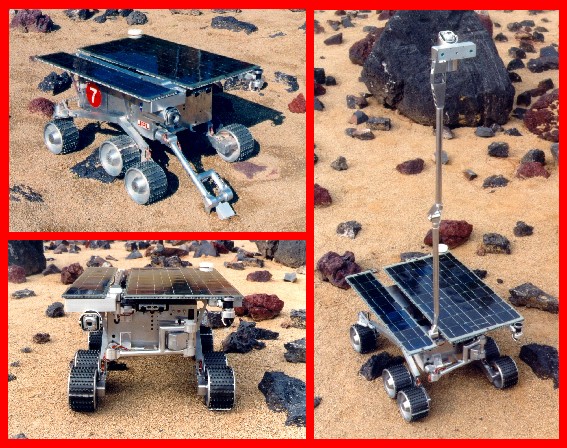

    The project could be of extensive use in AUTONOMOUS SURVEILLANCE ROBOTS, MARS EXPLORERS, UNMANNED VEHICLES(UMVs) and PILOT LESS AIR CRAFTS etc. What we wish to finally come up with is the implementation of AUTONOMOUS NAVIGATION on the Remotely Operated Mobile Platform.

picture 1 URL : robotics.jpl.nasa.gov/tasks/scirover/homepage.html

Example:

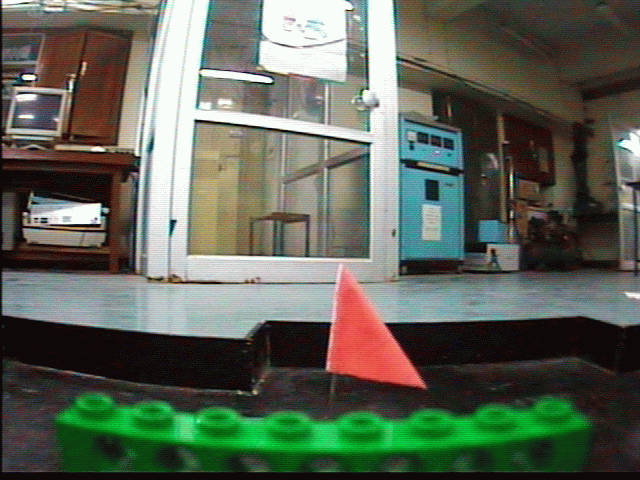

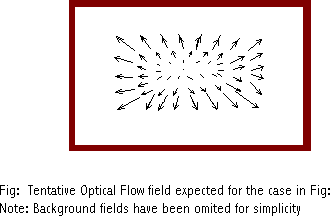

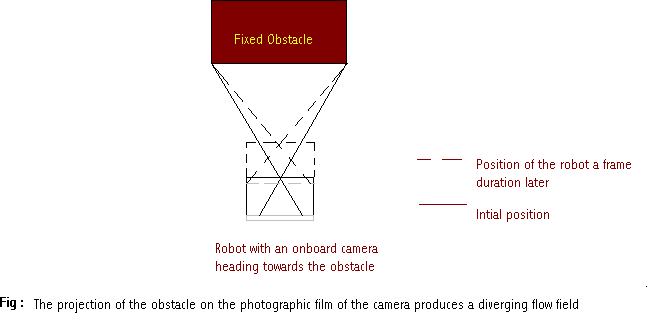

   The following two figures provide a very simple insight into the concept of Optical Flow. These figures exemplify how Optical Flow can be used for detecting obstacles during autonomous navigation.
Figure 1

Figure 2

Past Work

    Some help was also taken from "Real Time Optical Flow", the Ph.D. thesis of Ted Camus.

Methodology

   We have divided our project into three modules:

1.  Generating the Optical Flow fields from the motion of the robot.
2.  Meaningful interpretation of the fields and deciding upon the next step.
3.  Implementing the commands given by the master processor on a physical robot.

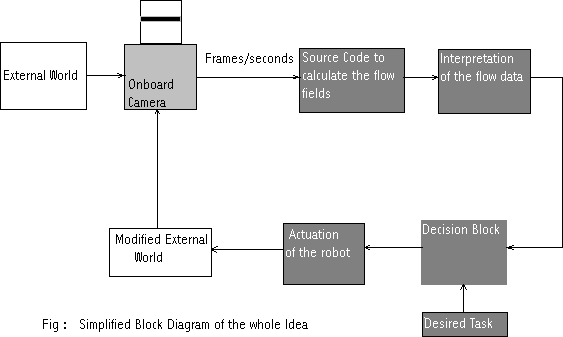

The following figure shows the block diagram of the process.


OPTICAL FLOW FIELD GENERATION

There are two basic techniques used to determine OPTICAL FLOW :


1.  Differential Techniques and
2.  Region Based Matching.

   In the differential techniques we estimate the velocity of the pixels by computing spatiotemporal derivatives of the image. Here we have to make certain assumptions like

• the intensities or say gradients of intensities remain constant with time and
• aliasing does not take place.

   In Region Based Matching we take two consecutive frames and find the position of pixels in the two images which correspond to the same object. Let us define the image at two instants to be F(x,y) and G(x,y) where F(x,y) and G(x,y) contain the value of intensities of pixel (x,y). To find the best match of the pixel at the position (x,y) in the first image we have to maximize similarity measures like correlation function or minimize distance functions like sum-of-squared difference(SSD) given by:



• We break up the whole image ( 320 X 240 ) pixels in 40 blobs of 8 X 6 pixels and assume that the whole blob moves as a single entity . This simplifies and speeds up the computation. This is known as the rigid bodyapproximation .In this case we get 40 optical flow vectors.

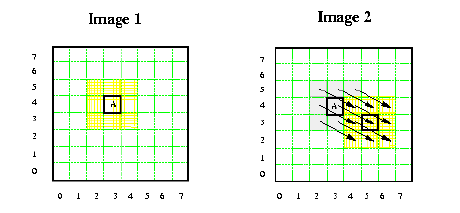

Here the blob is 3 X 3 big.

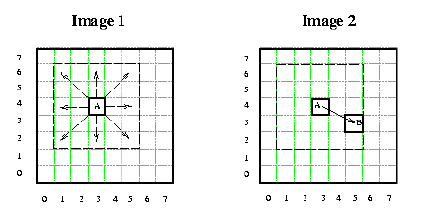

The search space for pixel A is depicted and the corresponding point found is B .

INTERPRETATION OF OPTICAL FLOW FIELDS

   In order to analyze the data from the optical flow field we find the time to contact of the obstacles . The inherent assumption is that the robot is moving in the direction along the optical axis.

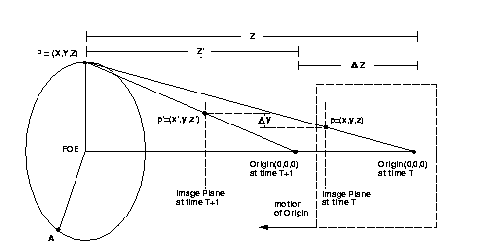

   The above figure discusses the optical geometry . The point of interest P at coordinates ( X Y Z ) is projected through the focus of projection centered at the origin of the coordinate system ( 0,0,0 ). P is stationary in the real world whereas the origin of the projection moves forward with a velocity of (dZ/dt). As the image plane moves closer to P , the position of p in the image also changes. Using equilateral triangles:

z is the distance of the screen from the optical center. So it remains constant as the robot moves forward. Since the robot is moving along the optical axis, Y also remains constant( see the above figure ). So the eqn.(3) becomes,

Since we already know the velocity of the robot (i.e. Z'), we can determine the depth from eqn.(4) and then we can determine X and Y from eqn.(1). Thus we can plot Z for each point in the image. Such a plot is called Depth Plot .
The data used for calculation and for plotting the depth plot is obtained by convolving the original depth plot image with a smoothening filter which quite effectively dampens out the noise we were getting  with the depth data.



Some of the results obtained can be seen below --

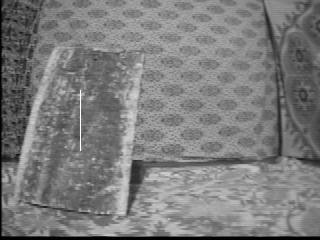

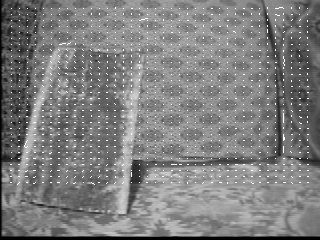

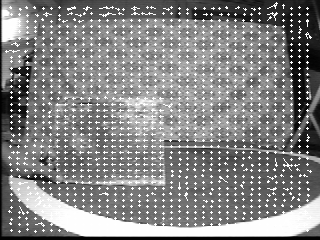

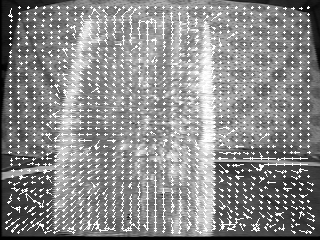

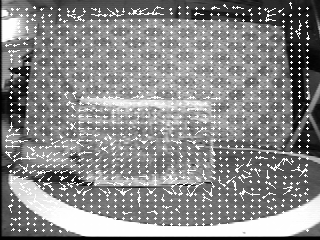

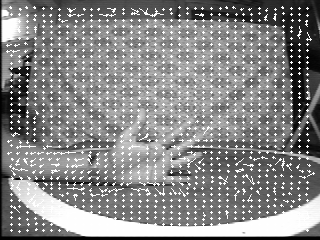

Robot fixed and the Plank moving laterally wrt the optical axis	Robot fixed and the hand moving towards the robot	Robot fixed and the Plank moving towards the robot

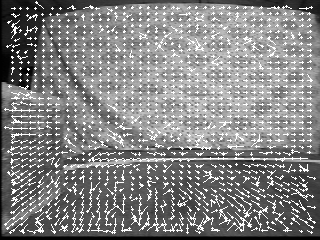

Robot directly heading towards a wooden plank	Robot moving parallel to the wooden plank	Robot moving towards obstacles at different depths Note : The obstacle that is nearer has larger optical flow fields

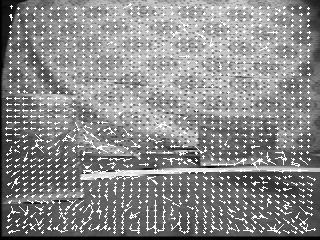

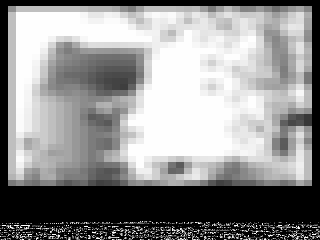

Robot directly heading towards a wooden plank	The corresponding optical flow fields	The corresponding depth plot

This is also used to find the values of X & Y to --

1. identify the obstacle and
2. to find the left & right edges of the obstacle.

   All this data is then fed to the decision making algorithm which then determines whether to move right , left , to continue and if so by what amount.

DECISION MAKING BASED ON OPTICAL FEEDBACK

   The decision about motions are made and appropriate instructions are passed via the transmitter to a receiver on the robot which are decoded by the microcontroller on the robot. This microcontroller then sends adequate pulses to the motors which in turn drives the wheels and the robot moves as per the decision made by the strategy programme.


IMPLEMENTATION ON HARDWARE

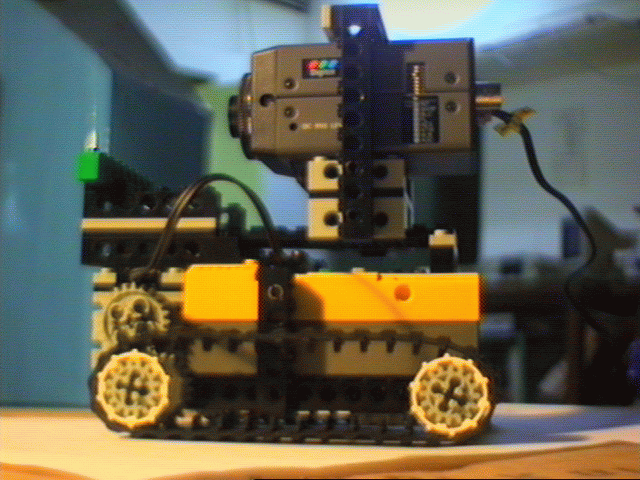

   We are implementing the commands given by the decision making program or strategy program on a physical robot. We are using a robot made of lego whose pictures are given below.

For documentation

The grabing of image sequences and changing them into the required buffers in the numerical array
form was accomplished using the MATROX Imaging card . The source code reffered below first
allocates memory locations for the various memory buffers and child buffers used and using
standard Matrox command to display frames continuously at a rate of 30 frames per seconds. Then
it grabs two frames for further computation and passes on the required buffers to the included
header "library.h" . The program also computes the time taken to grab the two images .The later part of the code contains standard commands for displaying the buffers processed by the included library.
Included Libraries :- mil.h
                                  stdio.h
                                  stdlib.h
                                  conio.h
                                  library.h ( This library was written by us )
Input :- Real Time data from the vision card
Output:-  Two grabbed Image Buffers and the time elapsed in between the two.
To see the source code click here.


The image buffer size recieved by this segment of the program is an array of 320x240 numbers .The estimation of flow fields is done by minimising the ssd of a 8 x 6 block over a 9 x 9 ie 81 matches . The search is done radially outwards

Finding the Time to Contact and getting the Relative depth plot

The next segment of the program deals with the computation of the Time to Contact of each 8 x 6
block using the two arrays and the time information supplied by the above program. It then finds the
relative depths of each point by multiplying the time with the robot's velocity. It then plots the corresponding depth ploton a scale of 0 - 255.

Decision making (Strategies)

This section stores the real world coordinates of the obstacles in an array and finds their edges. It uses this data to decide what to do next and passes this information to the program which sends data to the hardware through the serial port.
Included Libraries:- mil.h
                                  math.h
                                  time.h
Input:- Two Image Buffers and the time taken to grab them
Output :-   Image buffers containing Flow Fields, DepthPlots Original Image and The Decisions taken
To see the source code click here.

Sending the intructions to the on board microcontroller:- This is a standard program to send data on serial
port to the microcontroller. Instructions are sent in the form of bytes.
Included libraries:- dos.h
                                 conio.h
                                 math.h
                                 ctype.h
                                 stdio.h
                                 stdlib.h
                                 io.h
Input :-  Decisions made by the above program.
Output:- Bytes sent to the microcontroller.
To see the source code click here.
Execution of instructions :- This program was written in assembly language and was programmed on the
microcontroller . It decodes bytes recieved through the serial port and sends appropriate instructions to the
motors.
Input:- The bytes sent through the serial port.
Output:- Execution of instructions by the motors.


Sample Input & Expected Output

On-Line Links

• publications on robot vision for the years 1993-99
• Paper on interpretation of optical flow fields
• Paper on optical flow computation

Annotated Bibliography

The paper describes three different techniques for computation of Optical Flow in real time . They are
Gradient Based Optical Flow , Correlation Based Optical Flow and Linear Optical Flow . The intrinsic
assumption in Gradient Based Optical Flow is that the brightness at a given point in an image is contant
w.r.t. time and the two dimentional optical flow fields are computed using this assumption . Correlation
Based technique is the most reliable and robust of the three . The assumption here is that a certain block
of nearby n x n pixels have the same optical flow fields and the search space of the corresponding block in
the next frame is limited by a factor , which depends on the velocity of the moving robot or the external
world . This technique is computationally inefficient because the search space here is quadratic . Linear
Optical Flow technique is a correspondence search on the time scale ie it searches for the corresponding
pixel in successive frames at a location specified apriori .
        The paper also describes algorithms for computation of time to contact of each point in the field of
view . The estimation of the Focus of expansion for different sequence of motion is also dealt with in
elaborate detail . The paper also deals with various optical flow estimation problems like The Aperture
problem and The  Temporal Aliasing problem.
                                                                                                                        Abhishek Tiwari
                                                                                                                        Himanshu Arora
                                                                                                                        Tirthankar Bandyopadhyay (4/2000)}

@Article{Barron/Fleet/Beauchmin:1992,
  author=       { Barron,J.L. and D.J.Fleet and S.S.Beauchemin},
  year  =       { 1992},
  keywords =    { OPTICAL FLOW IMAGE},
  institution=  { UWO-CS/UWO-CS/QU-CS},
  title =       { Performance of Optical Flow Techniques},
  month =       { July},
  pages =       { 81},
  annote=       {

This paper describes various techniques for the computation of Optical Flow fields.
All these techniques can be broadly classified into two major types namely:
differential techniques and region based techniques. A few techniques of both types are
described in this paper. Differential techniques make a broad assumption that either
the intensity is constant with time or the gradient of intensity is constant with
time. This is a crude assumption in the sense that in addition to this assumption we
have an added disadvantage that the gradients usually cannot be calculated accurately.
The region based techniques are more reliable since even if the equations we get after
minimizing the SSD function do not have unique solution, we may use the data from the
past frames to decide on the pixels which brings out a more closer estimate as
compared to the differential techniques.
                                             Himanshu Arora
                                             Abhishek Tiwari
                                             Tirthankar Bandhopadhyay (2/2000)}}
