Artificial Intelligence ME 768 Jan-Apr 2000







The Final Report






K.V.Srikanth
and
Mayank Gupta

IIT Kanpur : April 2000











Aim of The Project

The aim of our project as in the proposal is to recognise and reconstruct the following image




Top

Related Work

Graphics Recognition

A lot of work has been done in the field of graphics recognition which deals with the problem of extrcting graphic objects from scanned images. The article by [Dori/Wenyin:1999] classifies graphic objects in a class based hierarchy (dashed lines, arcs etc). Moreover, it describes the algorithm to identify these features.

3-D Reconstruction

Many approaches have been adopted to solve the problem. These can be classified into three groups

In our project we are going to use constraint methods to obtain 3-D wireframe model of the 2-D projections. The earlier constraint based algorithms proposed were O(n^2) where n is the no of edges. Recently, method of complexity O(n*lg(n)) has been proposed by [Sastry/Sasmal/Mukerjee:1999] . The latter one was an algorithm that dealt with only lines and we propose to extend it for arcs and other complex figures.


Top


Graphics Object Recognition and Reconstruction

Our task in this porject is to generate 3-D from scanned orthographic projections of EDs. This involoves the following.

  1. Scanning the line drawing to obtain a raster(Binary/Greyscale) image
  2. Vectorization of the raster image to obtain a vector image model (Hough Transformation).
  3. Recognition of the vector image model to obtain image representation in terms of universal ED entities (Lines, Vertices, Arcs Etc.).
  4. Reconstruction of 3-D Engineering objects with the information generated in the above steps

Line Recognition

For line recognition we have used standard hough algorithm.

Hough transformation can be used to identiy lines, curves etc. The basic idea of Hough transforms is as follows.

A line in x-y coordinate system can be represented as parametric coordinates (r,#) where

In this parameter space a line correspondes to a point. The equation of line in this parameter space is :
r = x.cos(#) + y.sin(#)

We will use this property to detect a line. First of all we will make a2-D array (Accumulator Arrays) and initialize it to zero. Also, with each element of accumulator array we associate a link-list which stores the pixels(x-y) lying on that line. Now for all black pixels in the image we will find a set of lines passing through the pixel at regular interval of angles. The entries corresponding to these lines in the accumulator array will be incremented by one. Also, we store the coordinates of the pixel(x-y) in the link list associated with each entry.

Clearly, the value in the accumulator array indicates the number of pixels lying on the line. Hence the entries for which we have a large value represents a line.

Detection Of Line Segments

After generating the accumulator array, we take its maximum entry (the average of 3 entries along the r-parameter) and find the line segments corresponding to this line. For this we make use of the link-list associated with the line.

We sort the link-list according to x-coord.(if slope<1) or y-coord(if slope>=1). Now, two consecutive entries in the link-list lie on the same line segment, if they are sufficiently close enough. We use this property to identify line ends. Then we neglet lines which are less than a specified threshold to prevent recognition of false lines.

We repeat this algorithm for all values of accumulator array above a threshold.

Examples

Circle Recognition

Hough transformation can also be used to identify circles. They are parametrised by (x,y,r) where x,y refer to the center position and r refers to circle radius. In order to reduce the amount of computation in a 3-D Hough transform, the problem is divided into two passes.

To find circle centers, first note that any given pixel on a circle, the corresponding circle center will lie on the normal to the tangent at that pixel. We define a histogram over an (x,y) parameter space which is congruent to the image. For each black pixel p we estimate the tangent as the line of best fit to all pixels within a neighbourhood centered on p (using least-square method). This allows us to compute the normal and the pixels lying on these normals are recorded. Local maximas of the histogram give the location of candidate circle centers.

Now to find the radius of the circle, we construct a 1-D histogram for each center. For each black pixel in the image we compute its distance from the center and record it in the array. Maxima of this histogram correspond to the radii of circles.

By storing the coordinates of the pixel in the privious step, we get the pixels lying on the circle. From this we can calculate the start and end of the arc of the circle.


Ellipse Recognition

An ellipse is defined by a five parameters but a five parameter Hough Transform is undesirable as it will make impractical computational and memory demands. We have adopted the approach which separates the task into two passes. First, we identify possible ellipse centres, this requires only a two parameter Hough Transform. Then we evaluate the remaining three parameters using a simple focusing implementation of the Hough Transform.

Fig.1. Geometry of ellipse

Ellipse centres are extracted as follows. Consider two points P and Q (see Fig. 1) on an ellipse and estimate the tangents at these points. Let T be the point where these tangents intersect and M be the midpoint of PQ. For a perfect ellipse, the ellipse centre will lie on the ray originating at M and directed away from T.

Rays formed from different pairs of image points on an ellipse will intersect at the ellipse centre. A two parameter Hough Transform can be used to accumulate these rays, with the intersection of the rays corresponding to a maximum of the histogram.

As this algorithm records an entry for each pixel pair in the image, it is computationally very demanding.

Fig.2. Parametrisation of ellipse

We have chosen to define the ellipse by the radius of its major and minor axes (r1 and r2 respectively) and the angle ` that the major axis makes with the x axis (see Fig. 2). To find these parameters, we assume two parameters at regular intervals and find the third parameter for each black pixel. The maximum of the array will correspond to the actual parameters.



Top

Constraint Based Reconstruction

To recontruct the 3-D object we will use the algorithm proposed by
[Sastry/Sasmal/Mukerjee:1999] and extend this algorithm for more complex figures (Circles/Arcs).

Following is a brief outline of the proposed algorithm:

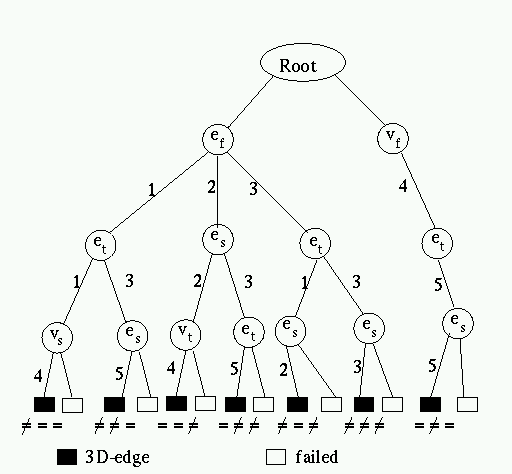

Fig 3. Search Tree for lines

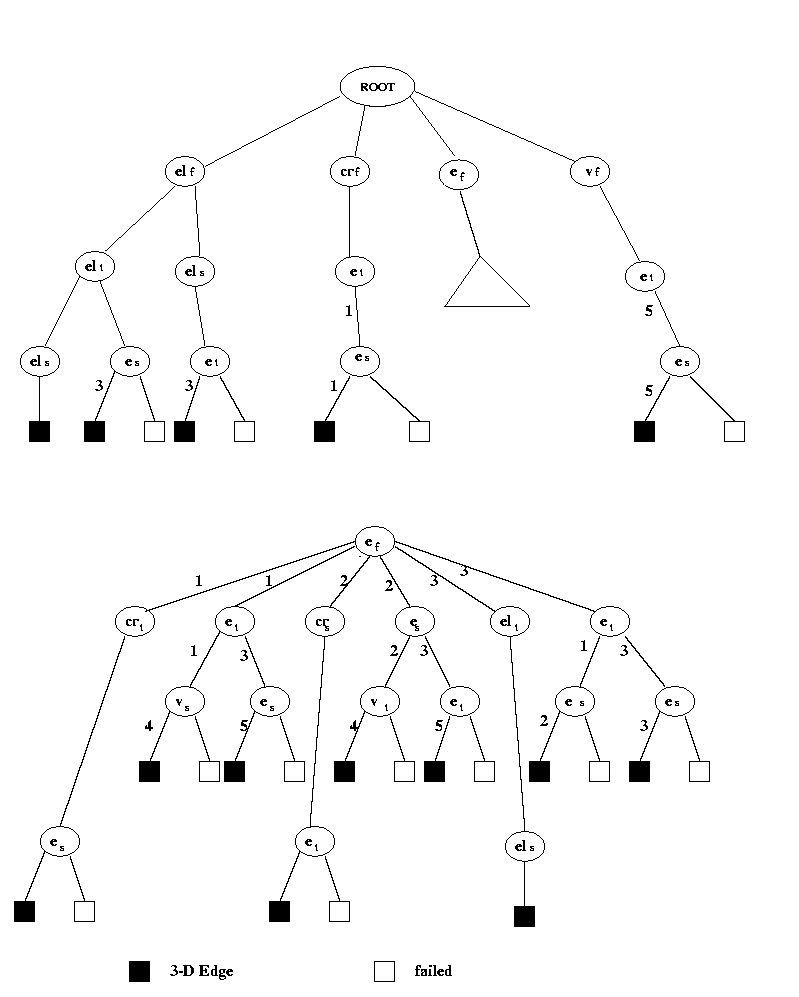

Fig 4. Search Tree for reconstruction with curves

As shown in fig 3. in constraint based reconstruction, we start with a view(say front view). Now, for each geometrical element (ellipse,circle,line,vertex) in the front view, we find the corresponding element in other views. To find the corresponding elements in other views, we use constraints such as:

  1. Coordinates of center of ellipse in the three views should be consistent.
  2. Coordinates of min and max point along the x-axis should match.
  3. Coordinates of min and max point along the y-axis should match.
  4. Coordinates of min and max point along the z-axis should match.
  5. In case of lines, the type of line (as explained below) should be consistent

By using these constraints we can identify the plane in which the curve lies by finding three points lying on the plane. Then by a suitable transformation we can reconstruct the 3-D curve.

Lines in 3-D can be qualitatively classified into 7 categories. In order to describe them we need a relation Rx,Ry,Rz between the end points of the line segments. The relation Rx, says that the x-coordinates of the end points of the line segments are equal and similarly for Ry and Rz. Moreover !Rx means that the relation Rx doesn't holds. Now a line can belong to these categories.

  1. Rx,!Ry,!Rz
  2. !Rx,Ry,!Rz
  3. !Rx,!Ry,Rz
  4. !Rx,Ry,Rz
  5. Rx,!Ry,Rz
  6. Rx,Ry,!Rz
  7. !Rx,!Ry,!Rz
Now for a line in a view, say Front-View we try to find the corresponding projection in other views which satisfy the above contraints. In this way we are able to reject many potential line segments, i.e we are able to prune a large part of the search tree.

Examples

Top

The Post Processing Algorithm



The lines circles and ellipses generated by vectorization are not accurate and thus we need to post process the vectorized images obtained by hough transformations.

We developed a post processing algorithm for lines only and couldn't develop an algorithm for circles and ellipses.This became a bottleneck in our project. The post processing algorithm for lines is as follows.

After the line vectorization is done the lines thus obtained are some pixels off their correct positions. So what we do is for each point(End point of a line) find out all the points lying in an epsilonn radius from that point and average all of them. Two overlapping parellel lines within some epsilon distance are merged. Vectorization also gives repeated lines so finally we remove all the repeated lines. What we do next is to generate the intersection points of the lines and generate the vertices, which are required by the reconstruction algorithm. The post processed image is then ready for reconstruction.

The problem arises in the post processing of circles and ellpises because, unlike in lines we can't just manipulate the end points to correct the image. This is hence a far more complicated problem and hence we couldn't device an appropriate algorithm.The results of the post processing algorithm are clear from the following example images.


Top

Conclusion




The
aim of our project was to completely recognise and reconstruct the image shown in our results, we achived the required to a certain extent. Our algorithm for reconstruction worked perfectly for all the possible cases as demonstrated. The algorithm for recognition worked well for lines and the post processing algorithm which we had used was a success for lines but, we are yet to design a good post processing algorithm for circles and ellipse.

The hough transformation algorithm which we had used for circles could not detect the circles accurately due to which a lot of post processing was requried.Since we didn't have a good post processing algorithm for circles we entered the parameters for circles manually to obtain the result for our original figure.

We also obtained moderate results for noisy images having only lines. This is due to our good line detection and post processing algorithms. We could reconstruct the noisy image .

Finally we got good results for reconstruction of an already vectorized image but couldn't get good results for recognition.



Top

References

On-Line Links

Other References

  1. Qing-Wen Yan, C.L.Philip Chen and Zesheng Tang, "Efficient algorithm for the reconstruction of 3D objects from orthographic projections", Computer Aided Design, Vol 26, No 9, pp 669-699 1994.
  2. Dov Dori and Karl Tombre, From engineering drawings to 3D CAD models: are we ready now? Computer Aided Design, Vol 25, No 4, 1995, pp243-254 as cited in [Sastry/Sasmal/Mukerjee:1999]
  3. Ablameyko S, A. Gorelik and S. Medvedev, "From recognized engineering drawings to 3D object reconstruction


Top



Annotated Bibliography


@Article{Dori/Wenyin:1999,
  author=		{ Dori, Dov and Liu Wenyin},
  year  = 		{1999},
  keywords=		{ GRAPHICS RECOGNITION, VECTORIZATION,
  				  RASTER-TO-VECTOR, ENGINEERING DRAWINGS},
  institution=  { Israel Institute of Technology, Haifa and Microsoft Research
  				  Sigma Center, Beijing},
  title=		{ Automated CAD Conversion with the Machine Drawing
  				  Understanding System: Concepts, Algorithms, and Performance},
  pages= 		{ 411-416},
  annote=		{
  		In this paper the authors has described the way in which graphic object
		can be classified in a hierarical manner. The authors has used the
		ideas of object-oriented programming languages such as Abstract
		classes, Inheritance etc to build the hierarchy.

		Moreover the author has described generic ways of detecting different
		graphic objects in an image using the above hierarchy.
  },
}

@TechReport{Sastry/Sasmal/Mukerjee:1999,
  author=       { Sastry, D. Sridhar and Nilanjan Sasmal and Amitabha Mukerjee },
  year  =       { 1999},
  keywords =    { Engineering Drawings, 3-D Reconstruction},
  institution=  { IIT Kanpur},
  title =       { Efficient Categorization of 3D Edges from 2D Projections},
  pages =       { 279 - 286 },
  annote=       {
  		In this paper an efficient algorithm of reconstructing 3D wireframes
		of 2D projections consisting of only lines and edges has been described.
		They have used the constraint based approach in which they use the
		3D relationship between the end of lines.

		By this approach they have been able to remove redundant edges.
		Also, the authors have proved the correctness and efficiency of
		there algorithm.
  },
}




Top

This report was prepared by K.V.Srikanth and Mayank Gupta as a part of the project component in the Course on Artificial Intelligence in Engineering in the JAN semester of 2000 . (Instructor : Amitabha Mukerjee )
